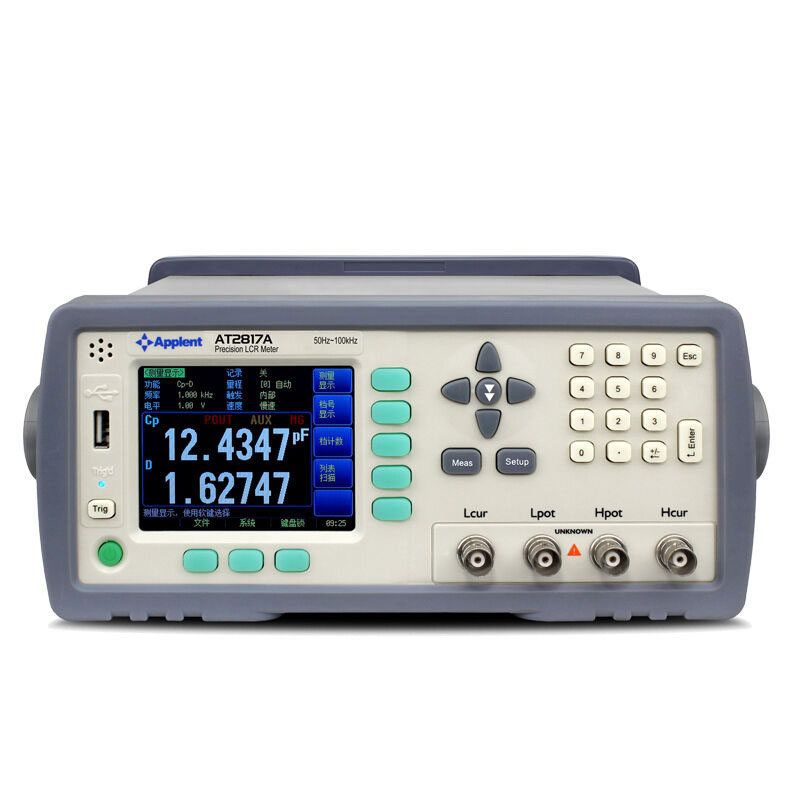

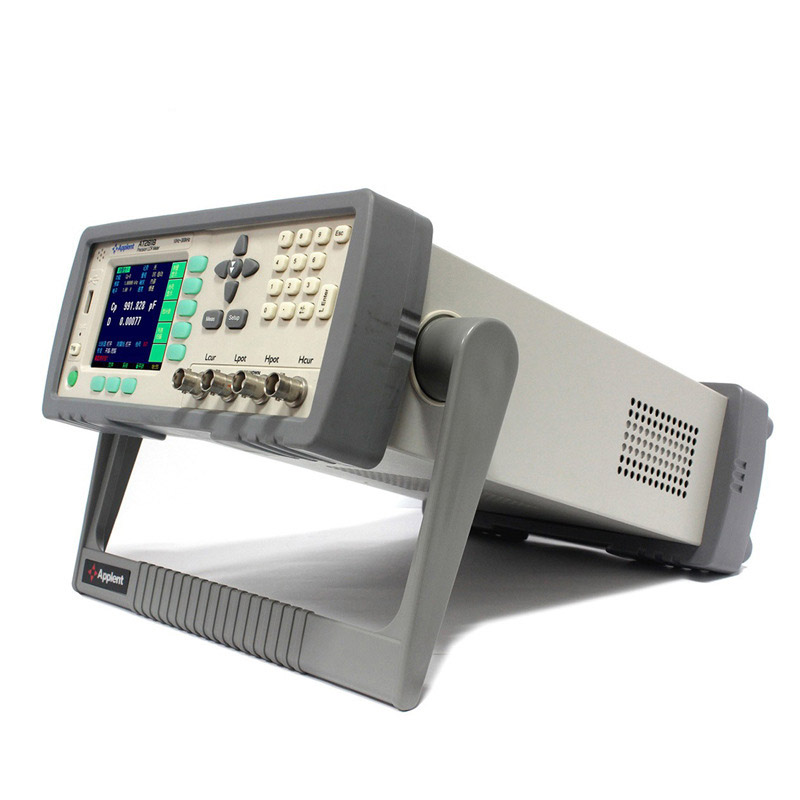

Benchtop Digital LCR Meter Signal Frequency 50Hz-100kHz 16 Points
Part No.: LCRM-AT2817A
-True color TFT-LCD display
-Correction function: full range open circuit and short circuit sweep frequency clear, three groups of user point frequency calibration.
-Multi-frequency test: support 10 frequency sweep tests
-Multi-level test: support 10 level sweep test
-File management: 10 sets of internal storage and 10 sets of USB disk storage.
-Enhanced comparator (sorting) function: programmable P1~P9 nine-level sorting, main parameters HI, IN, LO display and output, NG, AUX, SREJ, IDX, EOM, etc. display and output.
-Absolute deviation (ABS) comparison method, relative deviation (PER) and sequence (SEQ) comparison methods.
-Switchable secondary parameters (AUX) sorting.
-Customize the sorting result buzzer.

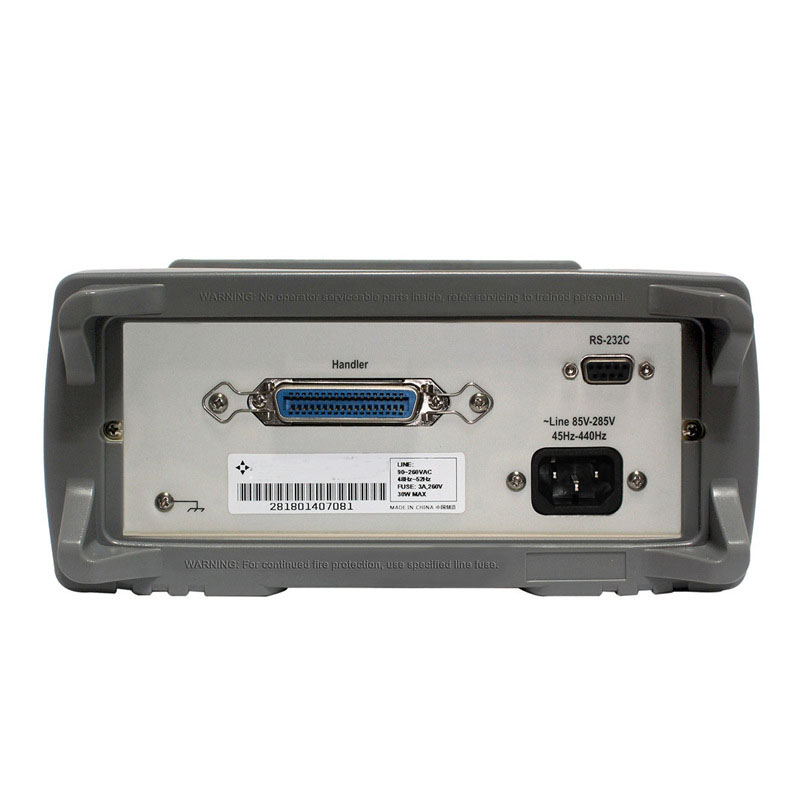

-Built-in RS232C interface and Handler interface.
-Built-in RS485/USB interface. (Rev.E version applies)
-Optional GPIB interface. (Rev.E version applies)
-1000V super impact protection
Specifications:
• Parameters: Cs-Rs, Cs-D, Cp-Rp, Cp-D,Lp-Rp, Lp-Q, Ls-Rs, Ls-Q, G-B, R-X, Z-θrad, Z-θdeg
• Monitor Parameters: Z, D, Q, θr, θd, R, X, G, B, Y, Vac, Iac, Δ, Δ%
• Accuracy:0.05% ±5 dgt
• Frequency:50Hz – 100kHz (16 points)
• Display Range
L: 0.00001μH-999999H
C: 0.00001pF – 999999μF
R,Z: 0.00001Ω – 99.9999MΩ
D,Q: 0.00001 – 999999
Θ(deg): -179.999 ° -179.999 °
Θ(rad) : -3.14159 – 3.14159
Δ%: -999999% – 999999%
• Source Resistance:30Ω, 50Ω, 100Ω
• Range:9 ranges, Automatic, Manual, Nominal
• Display Max:principle parameter: 999999; sub parameter: 999999
• Signal Level:0.01V – 2.00V (10mV Step)
• Speed:30t/s, 10t/s, 6 t/s, 3 t/s 1-256 times average is available
• Comparator:14-bin sorting, 10-bin GD, 1-bin NG, 1-bin AUX,2-bin principle parameter NG
• Adjustment:Open & Short circuit sweep frequency reset,3 point frequency reset and load calibration.
• Files:10 group files to save user’s setting, 1 group to save system data real-time
• Interface:RS232C, ExHandler interface,standard configuration USB Disc interface (article 10000 data)
• Others:LCR Automatic selection, keypad lock,SCPI instruction set, true-color TFT-LCD Display
• Power Supply
Voltage: 90V AC – 250V AC Frequency: 50Hz – 60Hz Max Power: 20VA
• Dimension & Weight:264mm (width)x107mm(height)x350mm(depth) 4kg
• Accessories
ATL501: Test cable
ATL607: Test Fixture
ATL600: Short-circuit device
ATL801: 232 Communication cable
