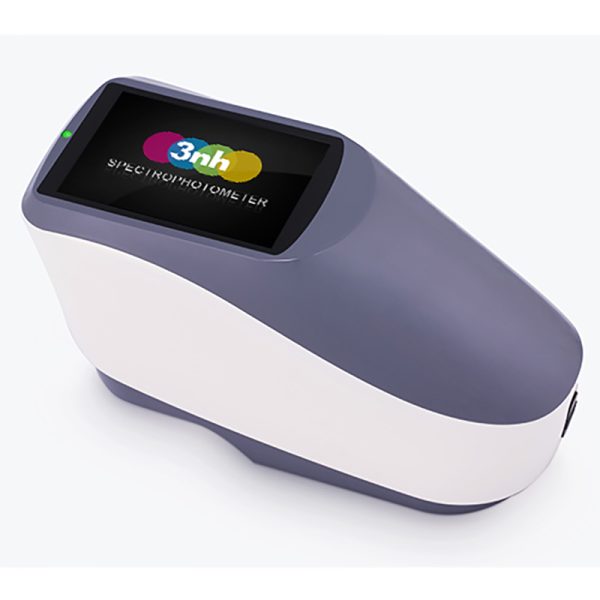

Cheap CIE LAB CH Chroma Meter Spectrophotometer Color Tester
- Model Number:CDME-2506
- Size: 187*77*105mm
- Weight: 600g
- Focal Length: N/A
- Wavelength Range: 400~700nm
- Product name: color tester
- Power: Electronic
- Measuring wavelength range: 400~700nm
- Wavelength interval: 10nm
- Half bandwidth: 10nm
- Operating temperature range: 0~40 ,0~85%RH(No condensation)
- Storage temperature range: -20~50,0~85%RH(No condensation)
2. CDME-2506 adopts bluetooth and USB dual modes for wider use, and with SCI & SCE measurement data, it is compatible with many famous brands.
3. It can be configured withd dual aperture: 10mm/8mm & 5mm/4mm.The 4mm is for the color measurement of small targets.

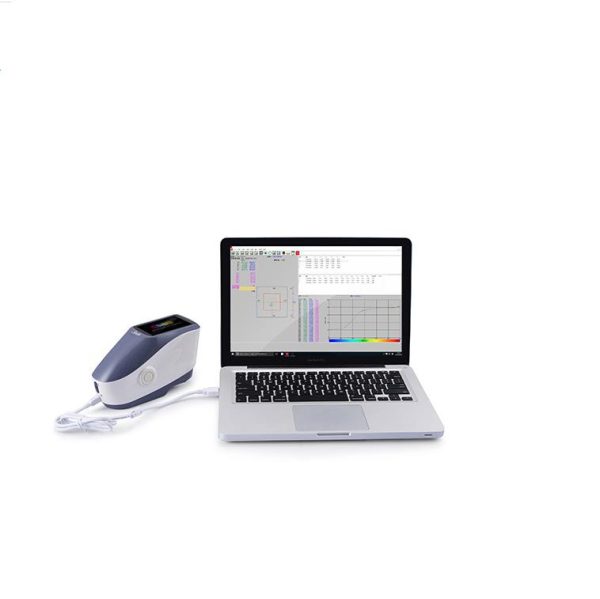

4. The PC terminal software SQCX provides powerful data management functions.
5. Compatible with the universal test component, the color measurement of liquids, powder and paste is no longer a problem.
6. Measured data is very close to those popular models of the world famous brands, like CM-2300d, CM-2600d, CM-600d, CM-700d of MINOLTA and Ci60, Ci62, Ci64, Ci64UV of X-rite.
7. It passed CE, ISO 9001, ROHS, FCC, TUV certification.
8. A built-in camera to help to aim the targets to be measured.
Model
|
CDME-2506
|
Brand
|
AIK
|
Optical Geometry
|
Reflect: di:8°, de:8°(diffused illumination, 8-degree viewing angle)
|
Observer Angle
|
2°/10°
|
Measuring Aperture
|
Dual Aperture: 10mm/8mm & 5mm/4mm
|
Specular Component
|
SCI&SCE
|
Light Source
|
Combined LED Light,UV Light
|
Integrating Sphere Size
|
48mm
|
Wavelength Range
|
400-700nm
|
Semiband Width
|
10nm
|
Measured Reflectance Range
|
0-200%
|
Wavelength Interval
|
10nm
|
Dimension
|
L*W*H=184*77*105mm
|
Weight
|
600(g)
|
Illuminant
|
D65, A, C, D50, D55, D75, F1, F2, F3, F4, F5, F6, F7, F8, F9, F10, F11, F12
|
Inter-instrument Error
|
MAV/SCI: ΔE*≤0.15
|
