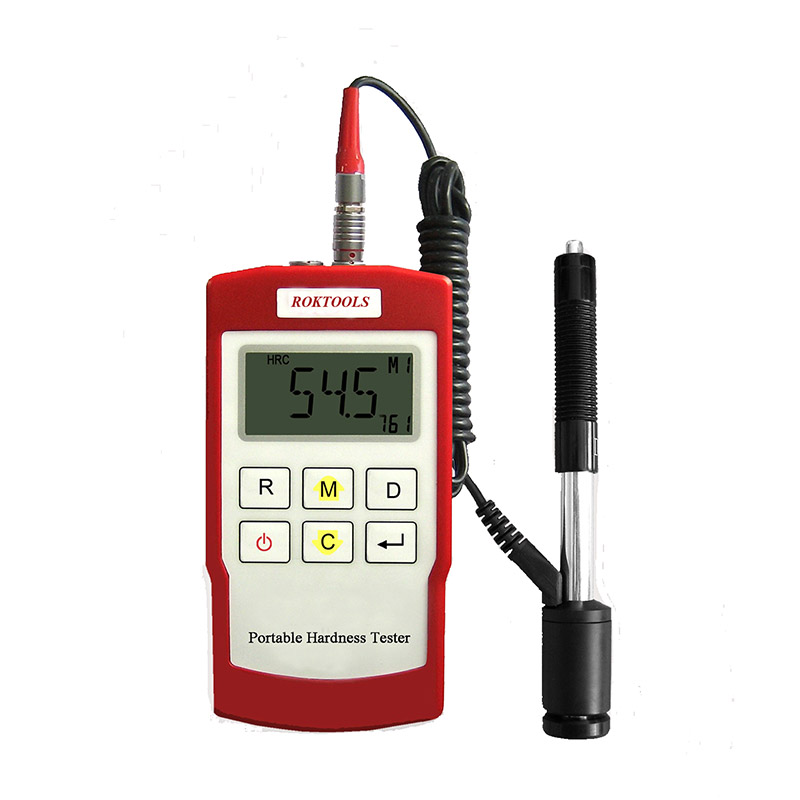

Handheld universal impact rebound leeb hardness tester
Part No: HT-3200
›› High accuracy: ±2HL(0.3% @HL800)
›› Linear accuracy for any angles
›› No need to setup impact direction
›› No compensation for impact direction
›› Dual values( Leeb value and one conversion value) can be displayed at the same screen
›› Big LCD display with backlight
›› It has strength conversion value
›› RS232 and blue tooth inter face, it can connect micro-printer direc tly by cable or wireless
›› 100 data for memory
›› Customer re- calibration allowed
›› Power off automatically
›› More economic and more convenient to use
HT-3200/3200D&DL | Standard Package | |
Principle | Leeb hardness measurement | Main Unit |
Accuracy | ±0.3% @ HL=800, Repeatability: ±2HL | Impact device DU/D-DL 2-in-1* |
Display | Digital LCD with backlight | Test block D |
Hardness scale | HL/HRC/HRB/HB/HV/HS/σb | Small support ring |
Measuring range | HL170-960/ HRC17-70/ HRB13-109/ HB20-655/ HV80-940 / HS32-99.5 / σb(rm)255-2639N/mm2 |
Cleaning brush |
Impact device | DU / D-DL 2-in-1* DL, D+15, G, C (optional) |
Operation manual |
Impact direc tion | Universal angle (UA) type | Test Certificate |
Materials | 10 common metal materials | Carrying case |
Memory | 300 data can be stored and re-readable | Optional accessories |
Statistics | Calculated automatically | Bluetooth/RS232 Micro printer |
Re-calibration | Allowed by user | Probe DU/DL/D+15/G/C |
Indicator | Low battery | Standard big support ring for probe |
Communication interface | RS232 to micro-printer Bluetooth (opt ional ) to bluetooth micro-printer |
Standard small support ring for probe |
Auto power off | Auto | Imapct body D |
Power supply | 1.5V AA alkaline battery x 2 | Carbide ball tip D |
Working environment | -10~+45 Cel Degree | Test block D without certificate |
Dimension (mm) | 127x66x29 | Test block D with certificate |
Net weight (g) | 240 | Bluetooth Module |
Standards | Conforming to ASTM A956, DIN 50156, GB/T 17394-1998 | Leather case with magnetism |
*: D-DL 2-in-1 probe is only available for HT-3200 DL. |
