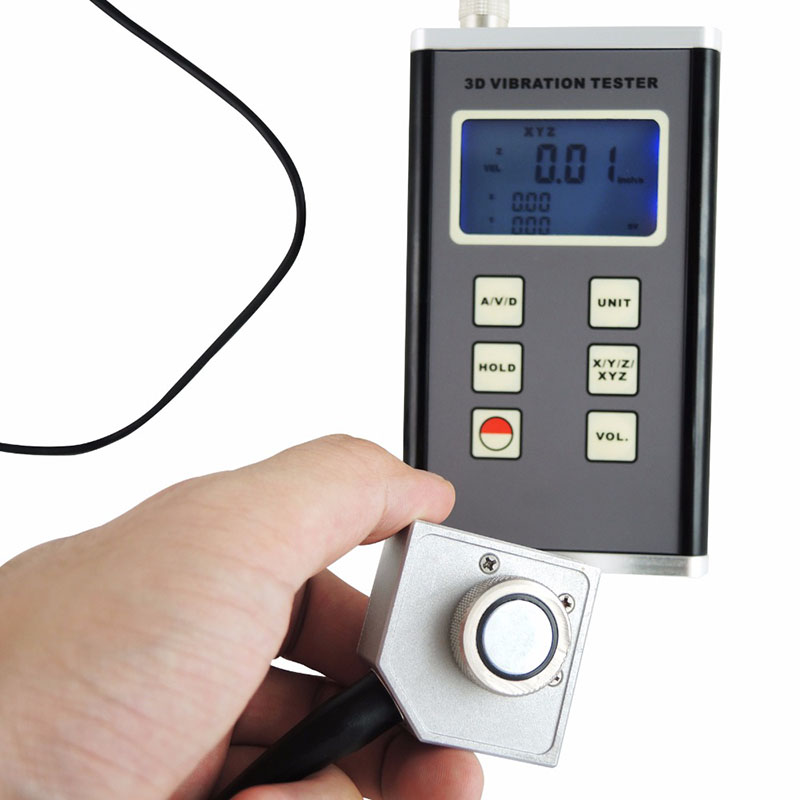

Individual high quality accelerometer vibration meter
* 3 same parameters in one display for 3 dimensional measurement or 1 dimensional measurement specified, showing 3 different parameters of velocity, acceleration and displacement in 1 display.
* In accordance with ISO 2954, used for periodic measurements, to detect out-of-balance, misalignment and other mechanical faults in rotating machines.

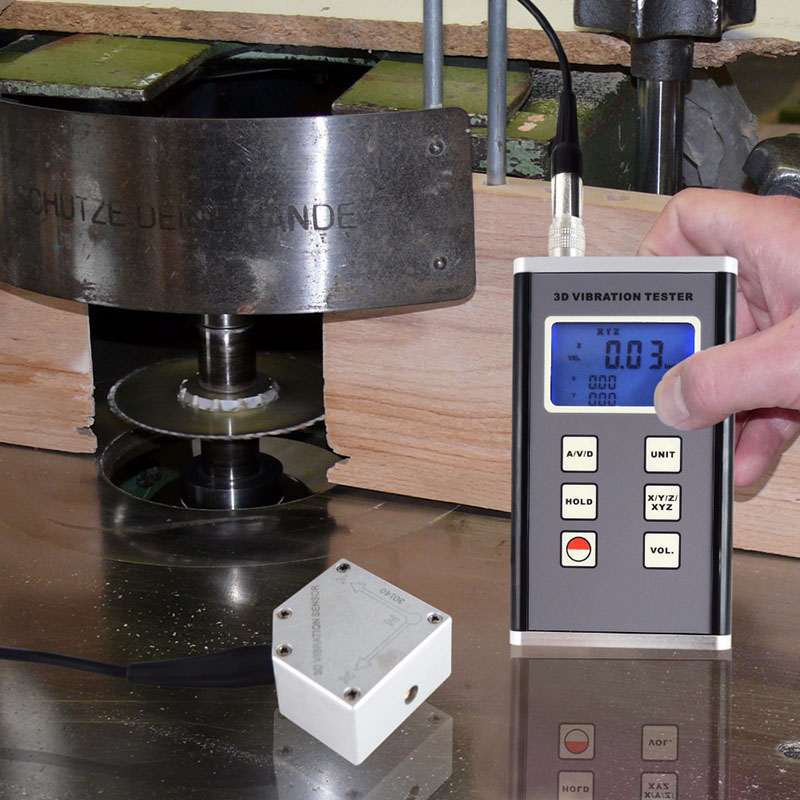

* Specially designed for easy on site vibration measurement of all rotating machinery for quality control,commissioning, and predictive maintenance purposes.
* Individual high quality accelerometer for accurate and repeatable measurements.
* Wide frequency range (10Hz~10kHz) in acceleration mode.
* Optional headphones for use as electronic stethoscope.
* Bearing condition monitoring function.
* Use USB/RS-232 data output to connect with PC.
* Provide Bluetooth data output choice.
Specification:
Sensor | Piezoelectric Transducer | |
Measuring Range | Acceleration | 0.1~400m/s² 0.3~1312ft/s² 0.0~40g Equivalent Peak |
Velocity | 0.01~400mm/s 0.004~16.0inch/sTrue RMS | |
Displacement | 0.001~4.0 mm 0.04~160.0 mil Equivalent Peak-peak | |
Frequency Range | Acceleration | 10Hz~10kHz |
Velocity | 10Hz~1kHz | |
Displacement | 10Hz~1kHz | |
Accuracy | 5% of Reading+2 digits | |
Operating Conditions | Temperature | 0~50ºC |
Humidity | <90%RH | |
Power Supply | 2×1.5V AA(UM-3)Battery | |
Dimensions | 137x76x32mm | |
Weight | 425g(Not Including Batteries) | |
Standard Accessories | Main Unit | |
Piezoelectric Transducer | ||
Powerful Rare Earth Magnet | ||
Probe(Cone)&Probe(Spherical) | ||
Carrying Case(B04) | ||
Manual Book | ||
Optional Accessories | Headset | |
RS-232C Data Cable with Software | ||
Bluetooth Data Adapter with Software |

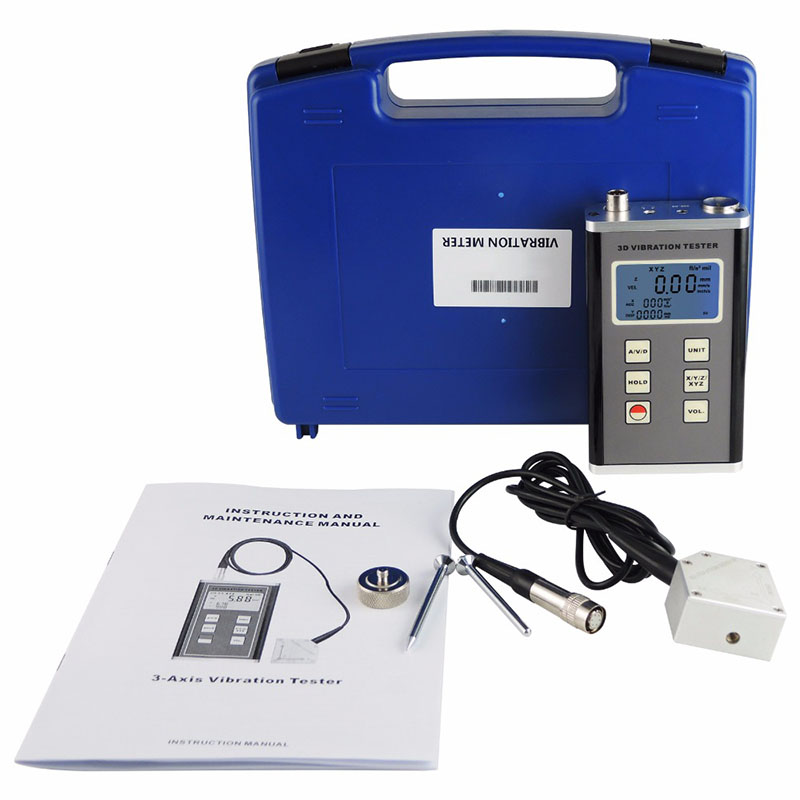

Standard Accessories
1. Main Unit … 1 piece
2. Magnetic Suction Seat………… 1 pair

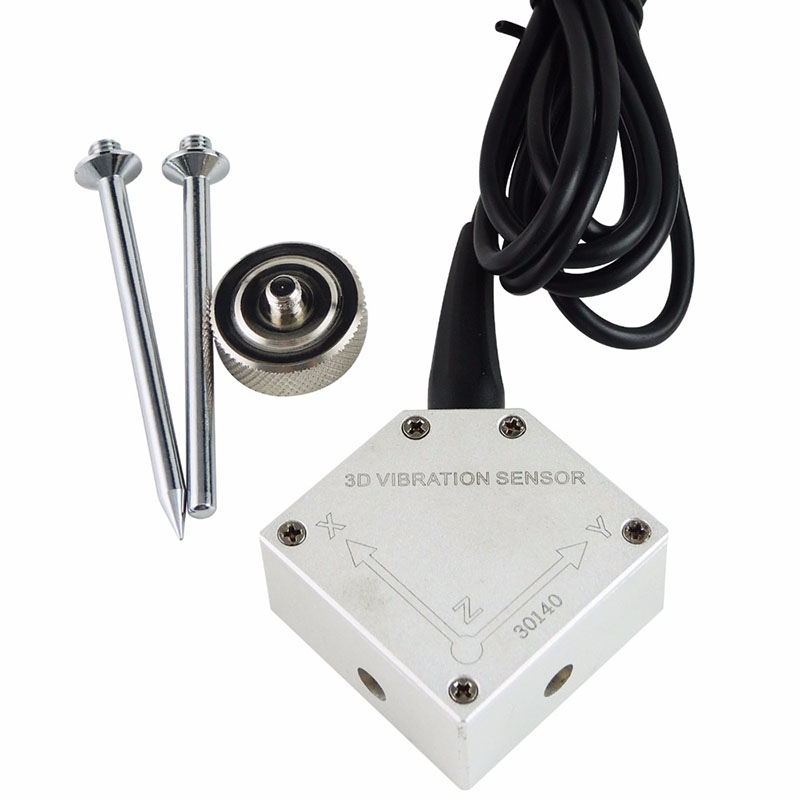

3. 3-Axis Piezoelectric Accelerometer…………1 pair
4. Probe (Cone) …………1 pair
5. Probe (Spherical) ………..1pair
6.Carying Case………………1 piece
7. Operation Manua(English)……….1 piece
